YOULI Proportional Valves

Youli Hydraulics

Youli Hydraulics - click to visit their website.


C&C Hydraulics can now offer the PV-3 and PV-4 proportional control valves from Youli, Proportional control valves or electric proportional control valves provide variable control of flow, pressure or direction in response to an electrical input signal. Designed and built to meet the unique needs of even the most demanding application both models of valve offer a wide range of spools and control options and give a high level of accuracy when controlling either hydraulic cylinders or hydraulic motors.

The valve sections are completely interchangeable with the Danfoss PVG range so offer an economic option for servicing the valves.

Please click the images below to view the full specifications (PDF.)

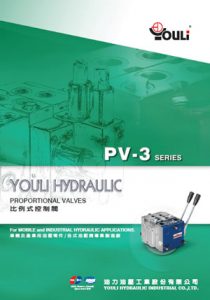

YOULI PV-3

YOULI PV-4

YOULI Proportional Joystick Control

Proportional valves PV-3

  • PV-3 is designed for maximum flexibility. Proven PV technology that saves you time. No matter which combination of valves is specified, the compact, external dimensions of the valve remain unchanged. Advanced electronic control can be achieved with our PVE electrohydraulic actuators.
    • OEM and machine benefits

      • Modular design, providing a wide range of configuration possibilities
      • Load-independent flow control for precise operation and improved productivity
      • Load-sensing technology for higher efficiency, safety, reduced energy consumption, and longer system life
  • Product features

    • Configurable as advanced electrically controlled proportional valve as well as load sensing directional control valve
    • Prevention against work port pressure build up
    • Individual work port pressure setting
    • Zero-leakage work modules
    • Open center and closed center versions available
    • Modular design

Load-sensing

By using PVG load-sensing technology in combination with a variable displacement pump, it’s possible to achieve a significant reduction in energy loss. PVG valves also reduce heat generation and increase efficiency and power density, which helps OEMs to meet the challenges posed by new diesel engine emissions legislation.

Applications

The PV valves are used across a wide range of industry sectors including road transport, materials handling, agriculture, public works / utilities, marine and industrial. The type of machines using this valve technology are vehicle mounted cranes, excavators, hedge trimmers, tele handlers, tractors, wheeled loaders and forklifts.

Posted in News.
